Casing - NZXT H710i - CA-H710 i- ATX Mid Tower PC Gaming Case - GPU Mount - Integrated RGB Lighting - White-Black

Dimensions

W: 230mm H: 516mm D: 494mm (with feet)

Material(s)

SGCC Steel and Tempered Glass

Weight

12.3 kg

Motherboard Support

Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches)

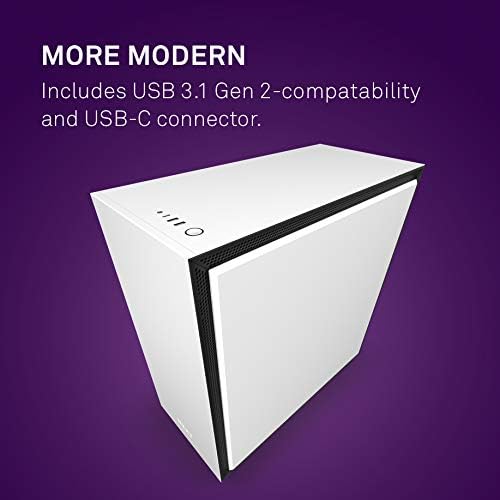

Front I/O Ports

1x USB 3.1 Gen 2 Type-C
2x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header

Filters

All Air Intakes

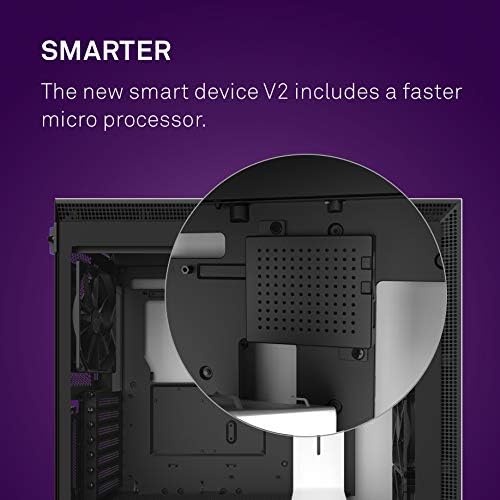

Smart Device V2

3x Fan channels with Max 10W per channel output*
2x RGB LED port support up to 4 x HUE 2 addressable LED strips or 5 x Aer RGB fans
Built-in noise detection module
*Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.

LED Strip(s)

2 integrated addressable LED strips

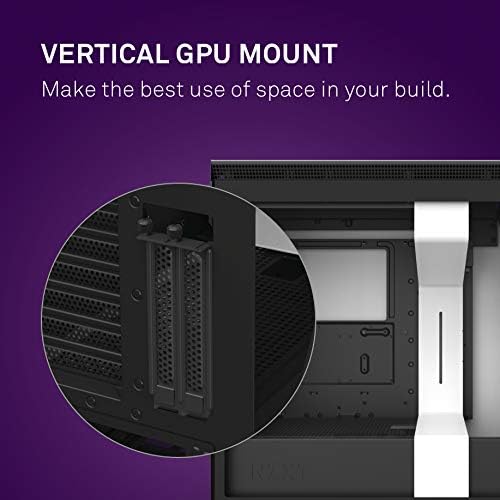

Vertical GPU Mount

Up to 2.5 Slots

Included Accessories

Installation screws
10x Cable ties
1x Headset Audio Jack Splitter (4 pole to 3 pole)

Expansion Slots

7

Drive Bays

2.5”: 7
3.5”: 2+2

Radiator Support

Front: 2x 140 or 3x 120mm with Push/Pull
Top: 2x 140 or 3x 120
Rear: 1x 120

Fan Support

Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included)
Top: 3x 120/2x 140mm
Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)

Fan Specs

Aer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing
Aer F140 (Case Version)
Speed: 1,000 ± 200 RPM
Airflow: 68.95 CFM
Noise: 29 dBA
Bearing: Rifle Bearing

Clearance

Cable Management: 18-22mm
GPU Clearance: Up to 413mm
Vertical GPU Mount Clearance: 50.8mm
CPU Cooler: Up to 185mm
Front Radiator: 60mm
Top Radiator: 30mm
Reservoir & Pump: Up to 224mm (Along cable bar)

Compatibility

NVIDIA GeForce RTX 30 series case compatibility chart

Warranty

2 Years

Model Number

CA-H710i-W1

EAN

5060301694945

UPC

815671014641
