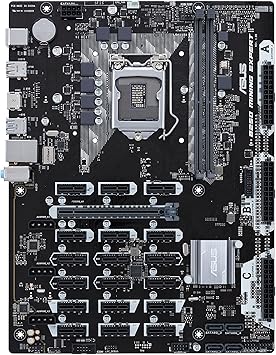

Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V
Special Price LKR 0.00
Regular Price:
- Islandwide Delivery Available
Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V power delivery, voltage-stabilization capacitors, and mining mode design
- World’s first 19-slot motherboard for multi-GPU mining
- Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
- ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
- Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
- Intel LAN and LANGuard for the best network performance
- CPU
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
Intel® B250
- Memory
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. - Graphic
Integrated Graphics Processor- Intel® HD Graphics support
VGA output support : HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively) - Expansion Slots
1 x PCIe x16 (x16 mode)
18 x PCIe x1 - Storage
4 x SATA 6Gb/s port(s),
- LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- USB Ports
Intel® B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) - Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
3 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
3 x 4-pin AUXPWR Header - Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
- Operating System
Windows® 10 64-bit
Windows® 7 64-bit *1 - Form Factor
ATX Form Factor
12 inch x 9.1 inch ( 30.5 cm x 23.1 cm ) - Note
1.Windows® 7 64-bit is only supported when using 6th Generation Intel® Processors
Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V power delivery, voltage-stabilization capacitors, and mining mode design
Designed for Crypto Mining
World's First 19-Slot Mining Motherboard
Max out your megahash rates!
ASUS B250 Mining Expert is the world's first mining motherboard to feature 19 PCI Express® (PCIe®) slots. With 18 PCIe x1 and one PCIe x16 slots on board, plus three zoned ATX12V power connectors, B250 Mining Expert lets you run up to 19 NVIDIA or AMD GPUs* in parallel to max out your megahash rates!
*Please refer to the FAQ for 19-GPUs configuration of B250 MINING EXPERT.
Triple-ATX12V Power Delivery
Engineered to deliver the power your graphics cards need
B250 Mining Expert has been engineered to provide all the power your GPUs demand, cleanly and efficiently. The 19 PCIe slots are grouped into three distinct zones, each powered by its own, dedicated 24-pin ATX12V power connector — reducing wiring complexity and ensuring ample power delivery to all PCIe slots.
Voltage-Stabilization Capacitors
Stable, low-noise power for your GPUs
Stable, low-noise power is a serious benefit for 24/7 cryptocurrency mining. That's why we've engineered B250 Mining Expert with 19 decoupling capacitors. These quality components smooth voltages and reduce high-frequency noise, so your GPUs get the good-quality power delivery needed for reliable operation.
