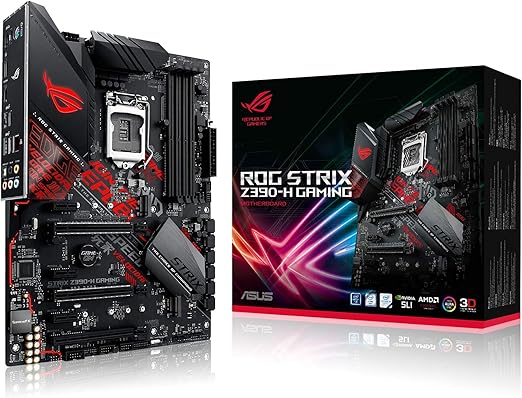

Fully command your gaming experience on 9th generation Intel® Core™ processors with the ROG Strix Z390-H Gaming featuring 5-Way Optimization for dynamic system control with AI overclocking. Dual M.2, Gigabit LAN and USB 3.1 Gen2 deliver maximum connectivity speeds while ASUS OptiMem II ensures better DRAM overclocking stability.

Designed for 9th and 8th generation Intel® Core™ processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Gamer’s Guardian ensures component longevity with SafeSlot, ESD Guards and DRAM Overcurrent Protection
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

Supported CPU

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors
* Not backward compatible with older generation of LGA 1151 CPUs
** Refer to www.asus.com for Intel CPU support list

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0*
* Intel Turbo Boost Technology 2.0 support depends on the CPU type

Chipsets

Chipset

Intel Z390

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
- Supports HDMI 1.4b withUHD, max. resolution 4096 x 2304 @ 24 Hz, 24 bpp or 3840 x 2160 @ 30 Hz, 24 bpp

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

8th Gen Intel Core Processors
2 x PCIe 3.0 x16 slots (support x16, x8/x8)
Intel Z390 Chipset
1 x PCIe 3.0 x16 slot (max. at x2 mode)

PCI Express x1

3 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

ROG SupremeFX S1220A High Definition Audio CODEC

Audio Channels

8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

HDMI

1 x HDMI

RJ45

1 x Anti-surge LAN (RJ45) port

DisplayPort

1 x DisplayPort

USB 3.1

2 x USB 3.1 Gen1 ports [blue]
4 x USB3.1 Gen2 ports (4 x Type-A [red])

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.1 Gen 1 header supports additional 4 USB 3.1 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports

Other Connectors

1 x 4-Pin CPU_FAN connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 4-Pin AIO_PUMP connector
1 x CPU_OV
1 x Thermal sensor connector
1 x Aura RGB headers
1 x MemOK!_II switch
1 x COM port
1 x TPM connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x Clear CMOS jumper

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
