Product Name

MWE Bronze 650

Model

MPX-6501-ACAAB

ATX Version

ATX 12V V2.31

PFC

Active PFC

Operation Voltage

100-240Vac

Input Voltage

100-240Vac

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

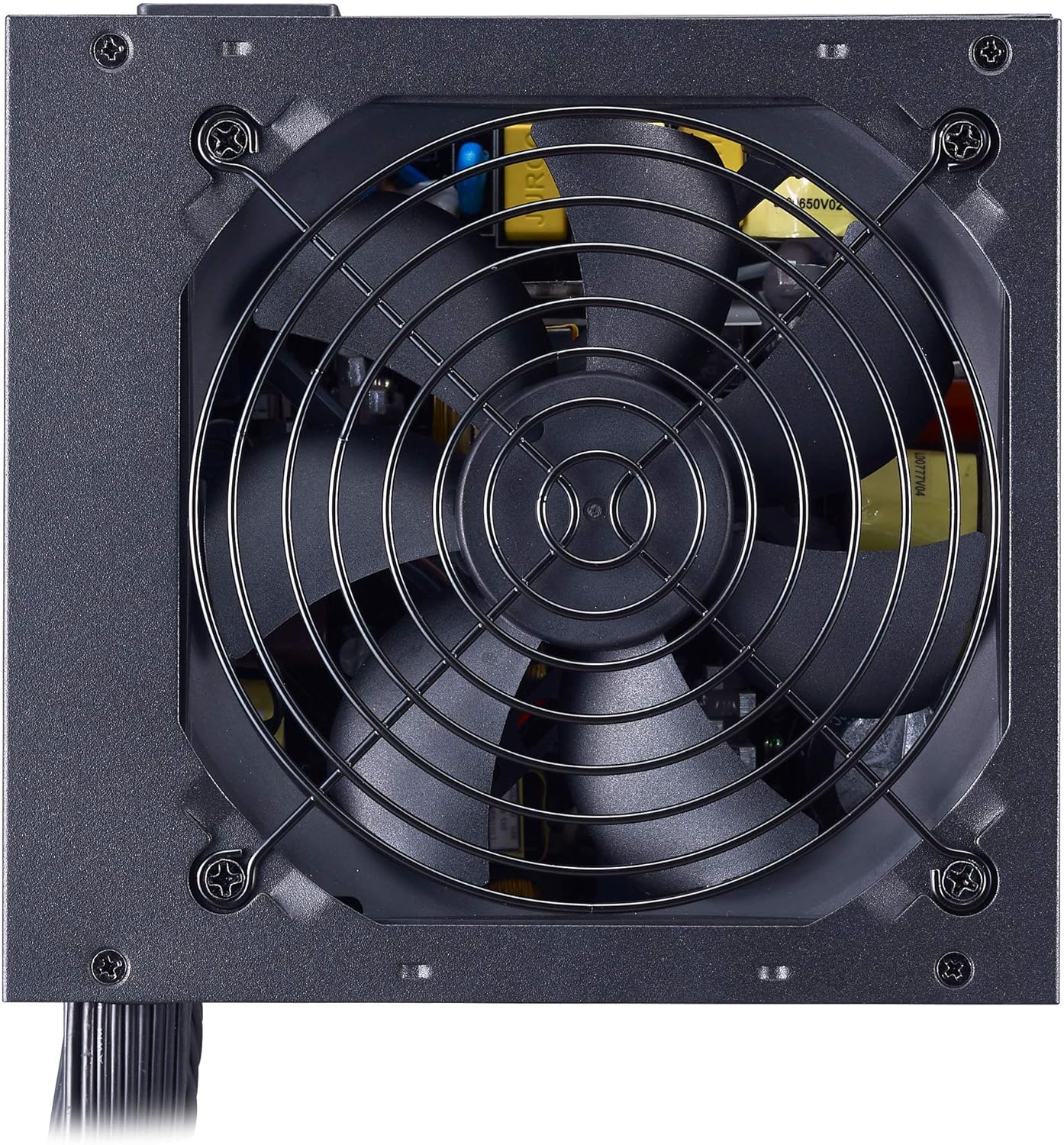

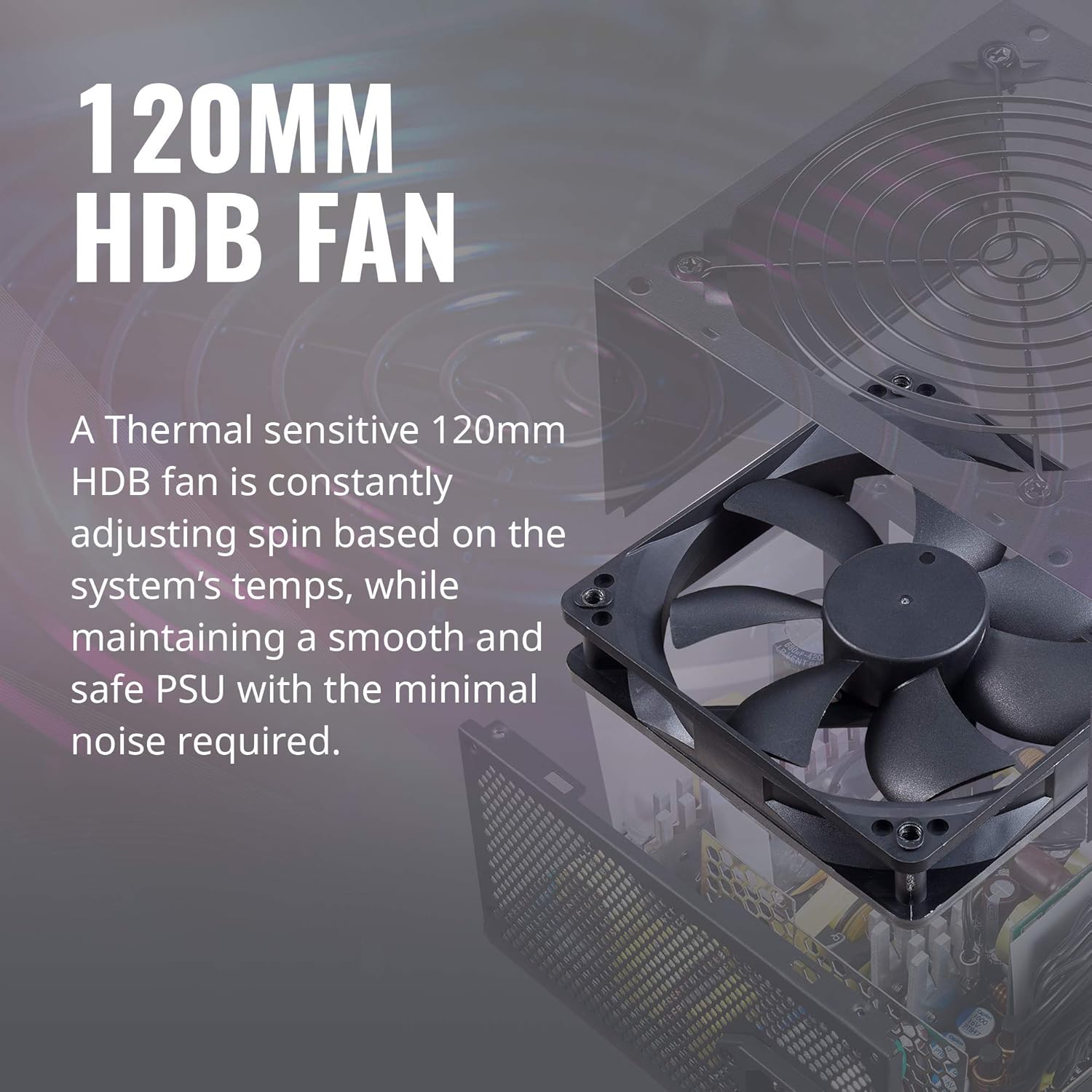

Fan Size

120mm

Fan Bearing

LDB

Power Good Signal

100 - 500 ms

Hold Up Time

16ms at 80% Load

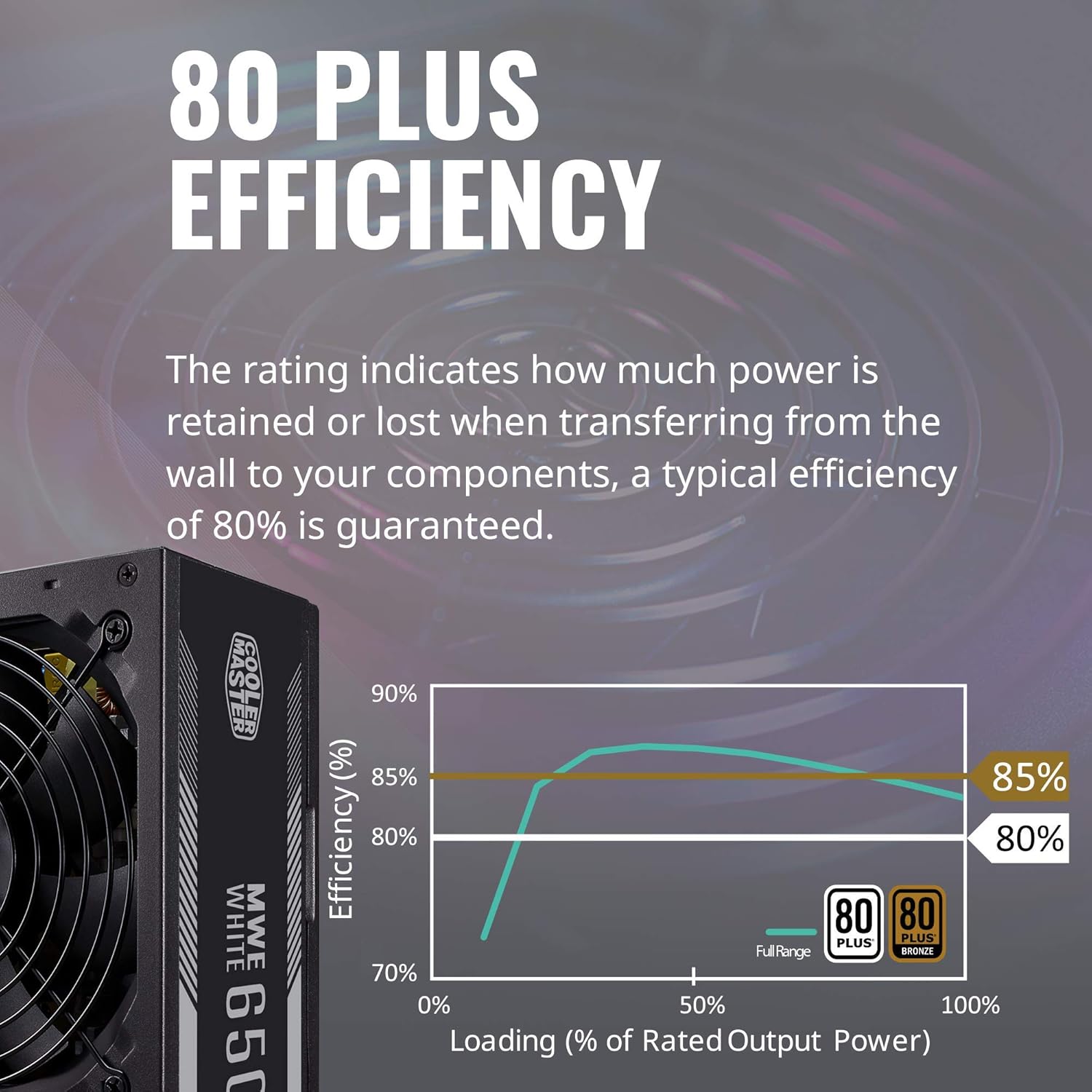

Efficiency

85% @ Typical Load

ErP 2013 Lot 6

Yes

MTBF

>100,000 Hours

Operating Temperature

0-40°C

Protections

OPP, OVP, UVP, OCP, OTP, SCP

Regulatory

TUV-RH, CE, CCC, KC, EAC, RCM, cTUVus, FCC, BSMI

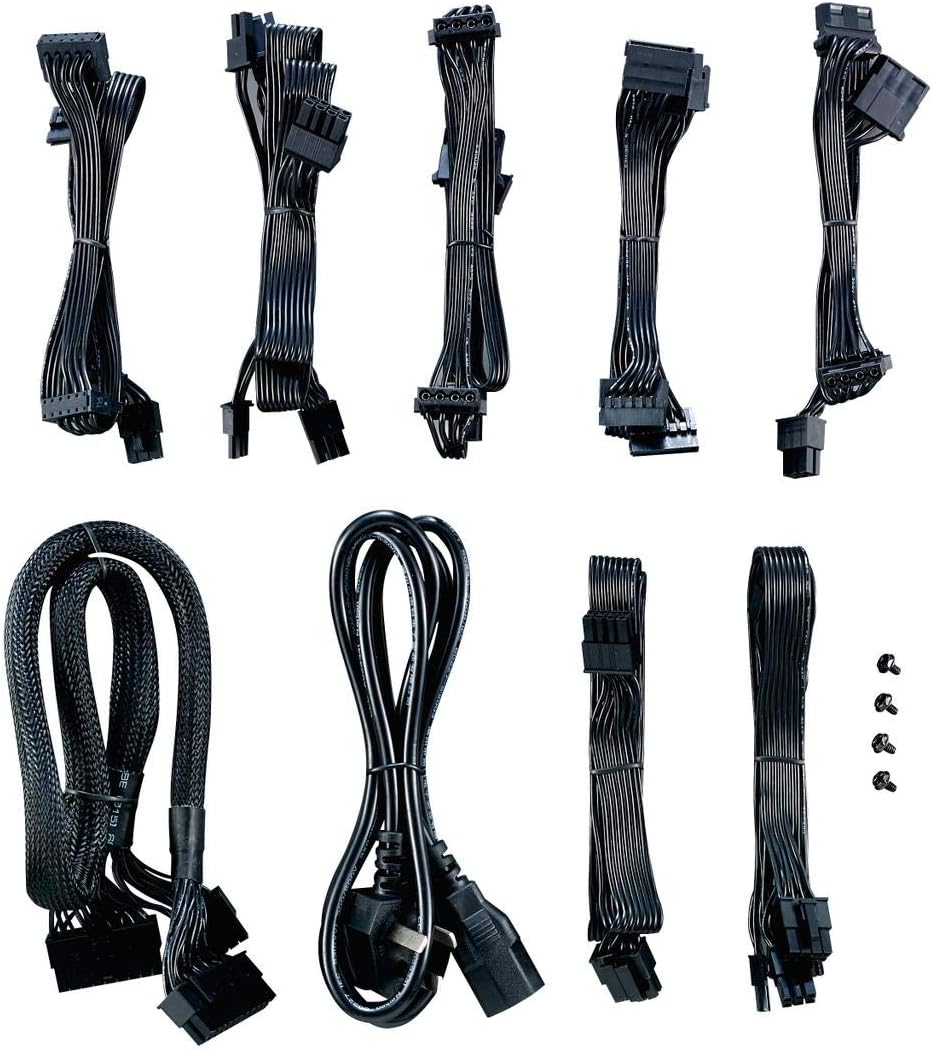

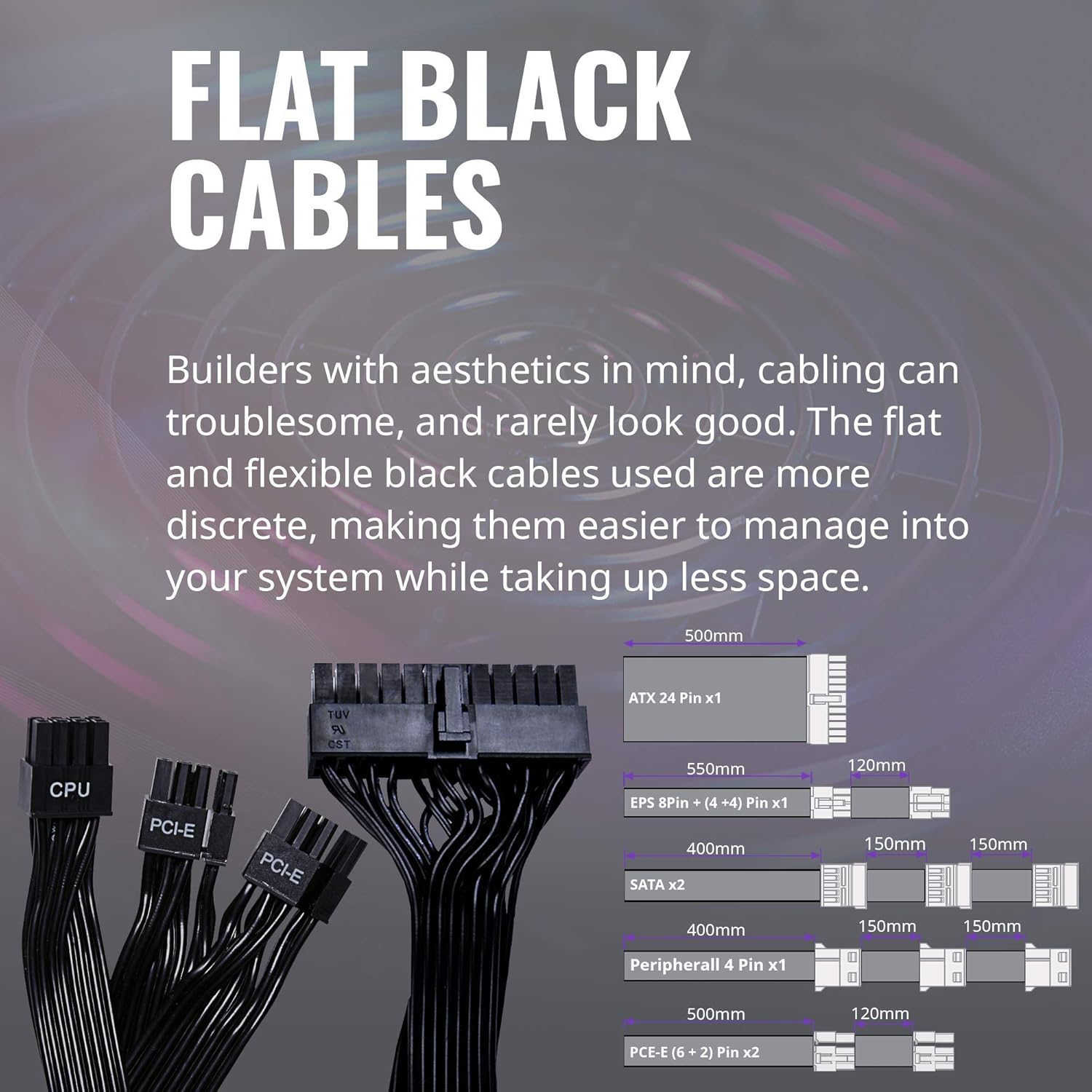

MB 20+4 Pin Connectors

1

CPU 12V 4+4 Pin Connectors

1

SATA Connectors

8

Peripheral 4-Pin Connectors

4

FDD Cable 4-Pin Connectors

1

PCI-e 6+2 Pin Connectors

4

80 Plus

Bronze

Modular

Non Modular

Wattage

500 to 750W

Series

MWE Bronze Series
