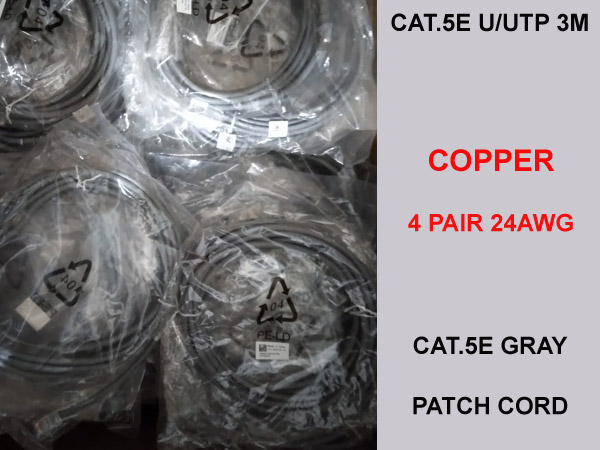

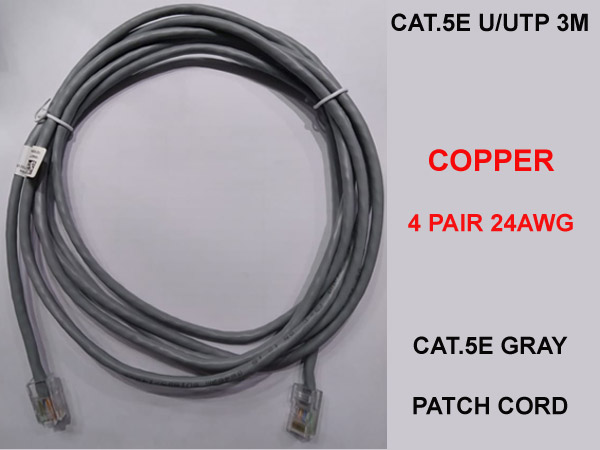

PATCH CORDS - CAT. 5E 3.0METER GRAY SOLID COPPER PATCH CORD
Special Price LKR 750.00
Regular Price:
- Islandwide Delivery Available
Cat. 5e U/UTP COPPER 24 AWG
Solid copper wire 24AWG 0.495 ± 0.005mm, with HDPE 0.88mm coating
Cat.5e U/UTP 2.0 METER
Coating : PCV 0.51mm
Diameter :4.9 ± 0.2mm
5e U/UTP System Patch Cord is designed for high-level project use. Compatible with the patch panel, keystone jack, and installation cable, to constitute excellent channel performance.
5e U/UTP System Patch Cord meets and over the standard ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 Class D specification.
APPLICATION
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video, and other applications.
COLOUR
- Available in Multicolor
CHARACTERISTICS
| Conductor | Material / Size | Solid Copper / 24 AWG | |
| Insulation | Material | HDPE | |
| Diameter | 0.8 ± 0.05 mm | ||
| Sheath | Material | PVC | LSOH |
| Diameter | 5.1 ± 0.2 mm | 5.1 ± 0.2 mm | |
| Operation Temperature | -20°C~+60°C | ||
| Installation Temperature | 0°C~+50°C | ||
| Storage Temperature | -30°C~+60°C | ||
