VIDEO CAPTURE 4K USB 3.0 MS2130

4K HDTV Video Capture Card powered by the MacroSilicon MS2130 chipset

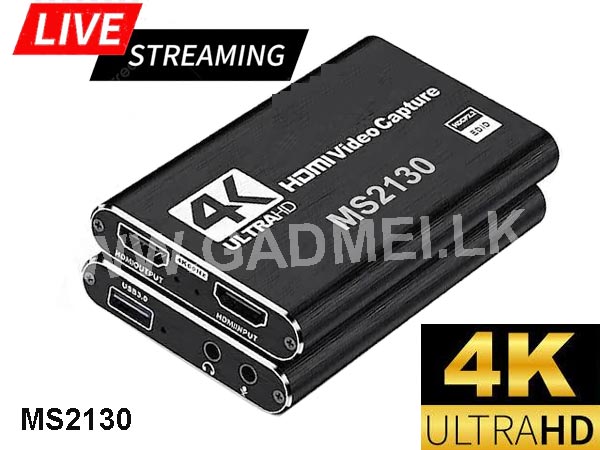

The MS2130 4K Ultra HD HDMI to USB Video Capture Card is a compact, high-performance capture dongle powered by the MacroSilicon MS2130 processing chipset.

Designed for streamers, gamers, content creators, and remote professionals, it converts HDMI video and audio signals into a standard USB signal.

Featuring USB 3.0 (USB 3.1 Gen 1) throughput, it overcomes the bandwidth bottlenecks of older capture cards—delivering smooth, uncompressed 1080p video at 60fps with minimal latency.

• High-Definition Video Input: Accepts source video inputs up to 4K (3840×2160) at 30Hz (or 60Hz loop/pass-through depending on setup) and 2K (2560×1440) at 30Hz.

• High-Frame-Rate Capture: Captures and outputs crisp 1080p Full HD at 60 fps, making it ideal for fast-paced gaming, live streaming, and high-quality recordings.

• True USB 3.0 Speed: Operates over USB 3.0 / 3.1 bandwidth for uncompressed video (YUV422 / YUY2). It is backward compatible with USB 2.0 (though frame rate or output resolution will be throttled over USB 2.0).

• Plug & Play (UVC / UAC Compliant): No drivers or external power required. It is automatically recognized by host systems as a standard webcam/audio input device.

• Universal OS & Software Support: Works seamlessly on Windows 11 / 10, Linux, macOS, and Android. Compatible with major streaming software like OBS Studio, VLC Media Player, XSplit, and Streamlabs.

• Broad Recording Formats: Supports flexible recording output formats, including MP4 and MKV, via streaming software.

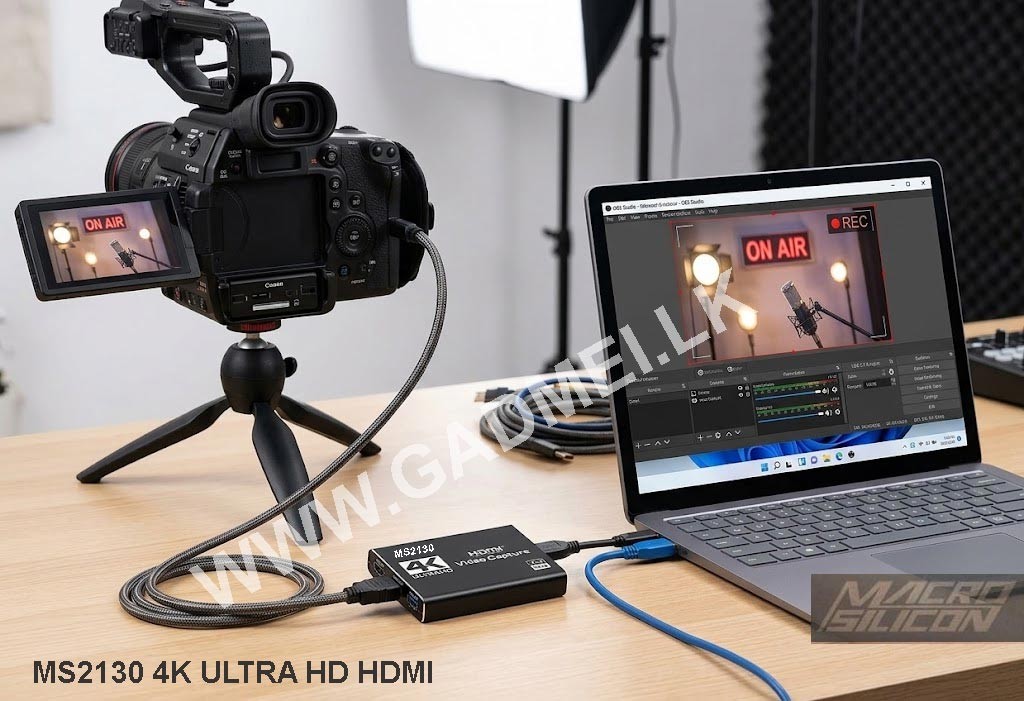

​Gaming & Streaming: Record console gameplay (PS5, Xbox, Switch, PS2) directly to OBS for Twitch or YouTube.

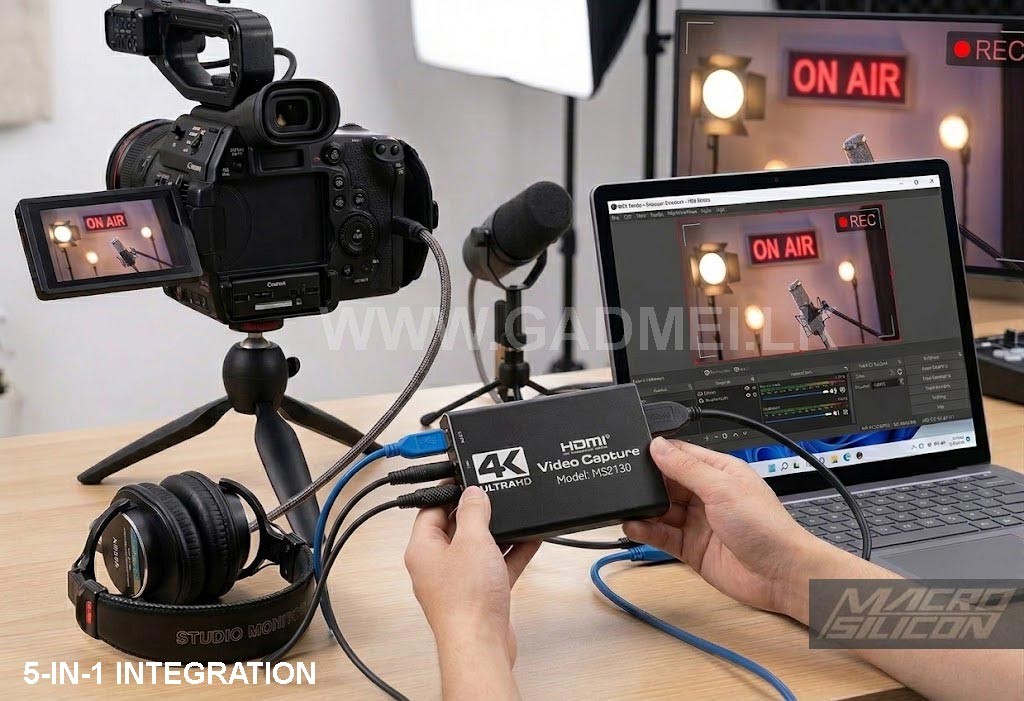

DSLR / Mirrorless Camera Webcams: Convert high-end cameras into high-definition webcams for video calls or broadcasting.

Retro Gaming Recording: Record vintage gameplay setups via HDMI upscalers/converters without video stutter.
